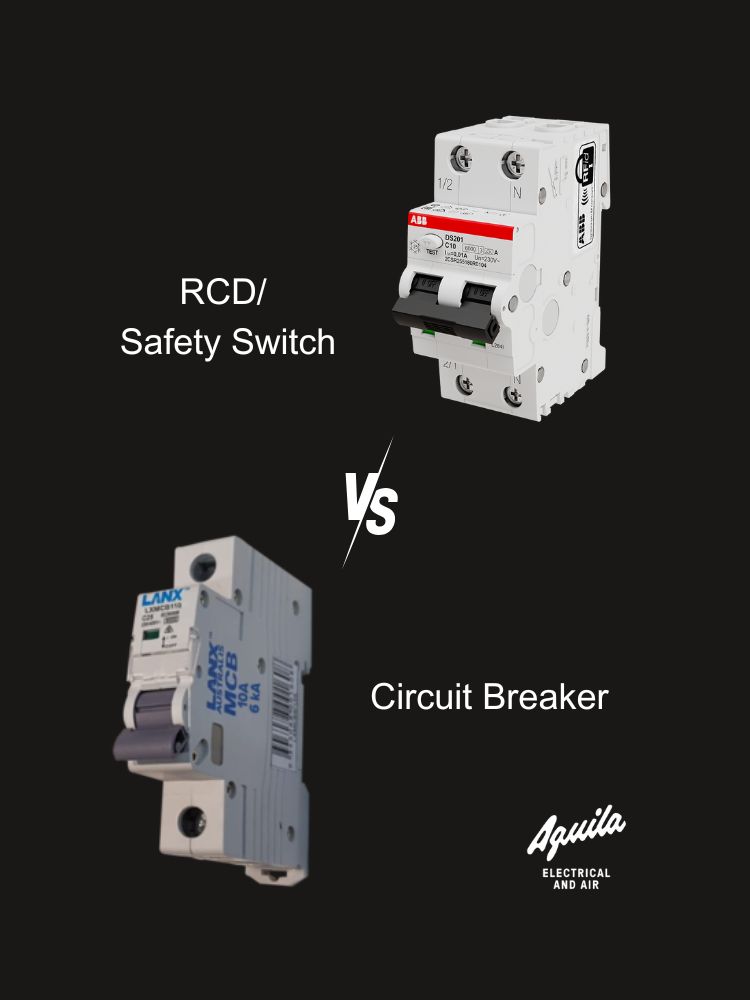

RCD/Safety Switch vs Circuit Breaker: What’s the Difference and Why It Matters
Introduction
Electrical safety is one of the most important aspects of any home in Adelaide. From preventing fires to protecting your family from electric shocks, having the right safety devices installed is critical. Every year, thousands of households experience electrical accidents that could have been avoided with proper protection. Understanding how your home’s electrical system works is the first step in keeping it safe.
A common misconception many homeowners have is that a circuit breaker and a safety switch (RCD) are the same thing. While they both play a role in protecting your home, they serve very different purposes. Mistaking one for the other can leave you exposed to serious risks, including fire hazards and electrocution. This guide will help you understand the difference between the two, their roles, and why having both is essential for a safe home.
What is a Circuit Breaker?
A circuit breaker is a safety device installed in your home’s electrical system to protect your wiring and appliances from damage. Its main job is to stop the flow of electricity when something goes wrong, such as too much current passing through the wires.
How It Works: Overload and Short-Circuit Protection
Circuit breakers work by automatically switching off the electricity when they detect:
- Overload: When too many appliances are running on the same circuit, causing the current to exceed safe limits.
- Short circuit: When electricity flows along an unintended path, often due to damaged wiring or faulty devices.
By cutting off the electricity, the circuit breaker prevents wiring from overheating and reduces the risk of electrical fires.
Examples of When a Circuit Breaker Trips
- Running a heater, air conditioner, and oven on the same circuit at the same time.
- Faulty wiring in a kitchen appliance causing a short circuit.
- Water damage or metal objects accidentally touching exposed wires.
Limitations: What a circuit breaker can’t do
While circuit breakers are excellent at protecting your home from fire and appliance damage, they do not protect people from electric shock. That’s where a safety switch or RCD comes in. Without a safety switch, a person touching a live wire could still be at serious risk of electrocution, even if the circuit breaker trips.
What is an RCD / Safety Switch?
A safety switch, also known as an RCD (Residual Current Device), is a crucial safety device in your home designed to protect people from electric shock. Unlike a circuit breaker, which protects wiring and appliances, a safety switch is all about keeping you and your family safe.
How It Works: Detects Earth Leakage and Protects People
The safety switch continuously monitors the flow of electricity in a circuit. If it detects any electricity leaking to the ground, for example, through a person touching a live wire, it immediately shuts off the power.
This usually happens within milliseconds, preventing serious injuries or even fatalities. Safety switches are particularly important in areas where water and electricity are close together, such as bathrooms, kitchens, and outdoor power points.
Examples of Situations Where a Safety Switch Activates
- Touching a faulty appliance that has a live wire exposed.
- Water spilling onto an electrical outlet or appliance.
- Damaged wiring causing electricity to leak to the ground.
Key Point: Protects Humans, Not Wiring
It’s important to remember that an RCD / safety switch does not protect your wiring or appliances. Its sole purpose is human safety. Without a safety switch, even if your circuit breaker is working correctly, you could still be at risk of electric shock in everyday situations.
Key Differences Between Circuit Breakers and Safety Switches (RCD)
Many homeowners get confused about RCD vs circuit breaker or safety switch vs circuit breaker. While both devices are essential for home safety, they serve different purposes. The table below breaks it down clearly:
Quick Takeaway for Homeowners
- Circuit breakers are for protecting your home’s electrical system.
- RCDs / safety switches are for protecting people.
- Both are required for a safe, modern home, and neither should replace the other.
Understanding the differences between a safety switch(RCD) and a circuit breaker is key to knowing why your home is safe or what upgrades might be needed.
Why Both RCD and Circuit Breaker Are Important in a Home
Having just a circuit breaker or only a safety switch isn’t enough to keep your home fully safe. That’s why both devices are essential; they complement each other and protect your home in different ways.
Complementary Roles: Wiring vs People Protection
- Circuit breakers protect your wiring and appliances from overloads and short circuits. They stop electrical problems that could cause fires or damage to equipment.
- RCDs / safety switches protect people by detecting electricity leaking to the ground and cutting the power instantly to prevent electrocution.
Together, they cover both sides of electrical safety: the home and the people living in it.
How They Work Together
When your home’s electrical system is working correctly:
- A short circuit or overload trips the circuit breaker, preventing fire or appliance damage.
- At the same time, if electricity starts leaking (for example, through a faulty appliance), the RCD / safety switch cuts power immediately, protecting anyone touching the appliance.
This combination ensures your home is safe from both fire hazards and electric shock.
Real-Life Examples
- Kitchen accident: You spill water near a toaster. The safety switch trips, preventing electrocution, while the circuit breaker continues protecting the circuit from overload.
- Overloaded living room circuit: Multiple heaters and appliances running together cause the circuit breaker to trip, preventing wiring from overheating.
- Faulty appliance: A damaged washing machine causes electricity to leak. The safety switch activates instantly, keeping you safe.
By having both a circuit breaker and RCD / safety switch installed, you’re covering all the bases and ensuring your home is as safe as possible.
What Happens If You Don’t Have One or Both?
Not having a circuit breaker or a safety switch (RCD) in your home can put both your property and your family at serious risk. Understanding these risks is key to seeing why both devices are essential.
Risks of Missing a Circuit Breaker
Without a circuit breaker:
- Electrical circuits can overload, causing wires to overheat.
- Short circuits may go unchecked, increasing the risk of electrical fires.
- Appliances are more likely to be damaged or destroyed during electrical faults.
Even a small fault, like a faulty heater or kitchen appliance, can lead to major property damage if there’s no circuit breaker installed.
Risks of Missing a Safety Switch / RCD
Without an RCD / safety switch:
- You or your family are at risk of electric shock or electrocution, especially in wet areas like bathrooms, kitchens, and outdoors.
- Even if the circuit breaker trips, it may not prevent electricity from flowing through a person, which could result in serious injury or death.
Australian Statistics & Real-Life Examples
- In 2023‑24, there were 722 hospitalisations in Australia due to electricity-related injuries, with 9 deaths reported. (AIHW)
- According to ERAC’s 2023‑24 Electrical Fatality Report, 10 out of 11 electrical deaths in Australia could have been prevented with proper safety devices like RCDs and circuit breakers. (ERAC)
- Many incidents occur in everyday home situations, such as faulty appliances, water spills near outlets, or DIY electrical work gone wrong.
Key Takeaway: Missing even one of these devices can put both your property and your loved ones at risk. A fully protected home needs both circuit breakers and RCDs / safety switches installed correctly.
How to Check If Your Home Has Circuit Breakers and RCDs
Knowing whether your home is protected by circuit breakers and RCDs / safety switches is essential for safety. Here’s a simple guide for homeowners in Adelaide or anywhere in Australia.
Step-by-Step Guide
- Locate your switchboard: Usually found in the garage, laundry, or utility area.
- Look for circuit breakers: These are typically small switches labeled with the areas or appliances they control, like “Kitchen” or “Living Room.”
- Look for RCDs / safety switches: These are often labeled “Safety Switch” or “RCD” and may have a test button marked “T” or “Test.”
- Test the RCD safely: Press the “Test” button; the switch should immediately cut power to the circuit. If it doesn’t, it may need servicing. (Do not attempt repairs yourself.)
Visual Indicators and Labels
- Circuit breakers usually look like black or grey switches that flip up and down.
- Safety switches / RCDs often have a red or yellow test button on the front.
- Many switchboards also include labels indicating the rooms or appliances each device protects.
When to Call a Licensed Electrician
- If you’re unsure which devices are installed or if they’re functioning correctly.
- If the RCD test fails or the breaker keeps tripping frequently.
- For upgrading an old switchboard or installing missing safety switches.
Pro Tip: Even if your home looks protected, older houses (especially built before 2000) may lack RCD protection in some circuits, putting your family at risk. A licensed electrician can inspect and upgrade your system safely.
Upgrading Your Electrical System for Safety
Upgrading your home’s electrical system ensures it meets current Australian safety standards and keeps your family protected.
- Safety standards: All homes should comply with AS/NZS 3000:2018, with RCD protection on all power outlets and circuits.
- Modern vs older homes: Older homes may lack RCDs or have outdated breakers. Upgrades like switchboard replacement, dedicated circuits for high-power appliances, and proper safety switches are essential.
- Cost vs value: Upgrading may cost upfront, but it prevents fires, electric shocks, and appliance damage, plus it adds value and peace of mind.
Bottom line: A safe, modern electrical system protects both your home and your family.
Conclusion
Understanding the difference between a circuit breaker and an RCD / safety switch is crucial for keeping your home safe. Circuit breakers protect your wiring and appliances from overloads and short circuits, while RCDs / safety switches protect people from electric shock and electrocution. Both devices are essential; they work together to prevent fires and keep your family safe.
